| Introduction |
HOMEEN is a leading silicone sealant manufacturer ,we mainly produce neutral one component electronic silicone sealant for consumer electronics ,for example ,conduction cooker ,oven ,fridge ,iron,etc .
We also produce two component potting compound for LED power driver ,and potting compound for LED display .
HOMEEN provide whole solution for LED ,solar PV ,consumer electronic ,automobile ,craft ,etc .
HM-382 silicone Sealant
Application

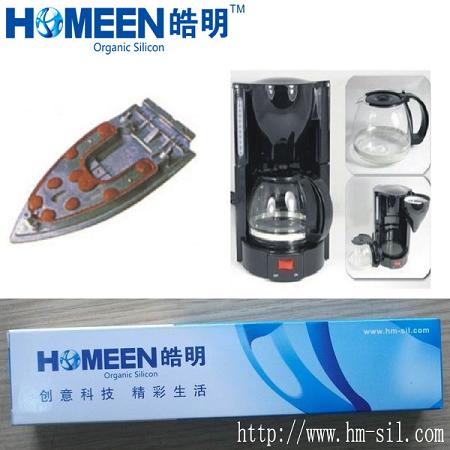

Jointing filling paying and seal up for the metal, plastic and glass parts in the coffee maker.
Sealing and insulation purpose for all sorts of electric appliances, electrical equipments insulation.
Some other things that need transparent sealing agent.
Features
Neutral curing，leveling property，good extrudability under 4C～40C temp.
Non-corrosion to glass, metal, plasterboard, marble, concrete etc., with fine cohesiveness.
Superior high-and-low temperature performance, very little change on property under temp range －50C～＋220；
Good property of water resistance and moisture proof, waterproof property.
Major parameter
|
Color |
Semitransparent, white or black |
sag（mm） |
4 |
|
specific gravity |
1.0g/cm3 |
Shore hardness（HAS） |
28 |
|
Tensile strength |
1.4Mpa |
shear strength(Mpa) |
1.2 |
|
Elongation at break |
220% |
using temperature range (C) |
–50-+230 |
|
Breakdown voltage |
16kv/mm |
volume resistivity |
5X1014Ω•CM |
|
Dielectric constant |
3.0(1MHz) |
Tack free time |
15 min（20C，50% RH） |
package
300ml per plastic bottle；toothpaste packing 100ml each
storage
Can be stored under cool, shady and dried circumstance with temperature -20C~27C, maximum 9 months.
Notes
This product is entirely cured sealant and non-toxic, yet should avoid getting touch to eyes and children. Please keep the working place ventilated always. Due to the multi filed application and the application condition is out of our control, we suggest to perform a test before using so we can meet your demand.
'>i� R<8;: 88 le='mso-spacerun:yes'>
Completely cured sealant is non-toxic, but do not directly contact with eyes or kids. Should keep ventilate when applying. We suggest that before applying, customer had better have a test to make sure our sealant can highly meet your demand.
4.If require mat effect,pls add the C component, and only after 24-48h of potting, the mat effect comes out.Relatively,higher temperature can accelerate the mat effect, but keep in mind, should be lower than 50C.
5. Color depends on customer’s requirement.
Test
We suggest that customers should test this product before application and see if it could meet the demand.
Shelf life
Store under 30C and stay sealed
Shelf life of component A and B is 12 months after the date of manufacture.
Tensile strength/Mpa 1.5Elongation at break/%
84
Dielectric strength/kV/mm
18
Thermal conductivity/W/m/K
0.7~0.9
Waterproof Rating IP65
Note: This product is subject to curing temperature, the temperature is higher, the operation and full curing time will be shorter.
workmanship
Mixing A,B parts according to proportion A:B=10:1 on the basis of weight or volume until evenly. Suggest to stir A and B part respectively before mixing them to make it uniform distribution. Then dispense the adhesive on the potting position. If need high-thermal conductivity vacuum deaeration
is necessary otherwise no need. It can be cured at room temperature or by heating. But it is featured of room temperature curing, there is summertime and wintertime types, the two types are sthe same except for the operation time.
Note:
This silicon rubber is vulcanized by platinum catalys, the nitrogen, sulfur, phoshor and rgano-tin compound material may hinder its vulcanization, so please clean the rosin on the PCB and use the soldering tin with low lead content.
Packaging:40kg/set。
Storage period :sealed under 30C, the A,B parts shelf life are 9 nine months after production. Thereare sediments come after 3 months,please mix it thorough eveness before using.
2000-2500
3500-4000
Specific gravity
1.55
Curing time
4-5h/28C，1h/80C
Operation time
40-60min/25C
Shore Hardness /A
55-60
Dissipation factor
0.003
Shrinkage percentage %
0.3-0.5
Flame retardant rating
UL94-V1
Dielectric constant
3.0
Volume resistivity/Ω·cm
1015
Tensile strength/Mpa
1.5
Elongation at break/%
84
Dielectric strength/kV/mm
18
Thermal conductivity/W/m/K
0.7~0.9
Waterproof Rating
IP65
Note: This product is subject to curing temperature, the temperature is higher, the operation and full curing time will be shorter.
workmanship
Mixing A,B parts according to proportion A:B=10:1 on the basis of weight or volume until evenly. Suggest to stir A and B part respectively before mixing them to make it uniform distribution. Then dispense the adhesive on the potting position. If need high-thermal conductivity vacuum deaeration
is necessary otherwise no need. It can be cured at room temperature or by heating. But it is featured of room temperature curing, there is summertime and wintertime types, the two types are sthe same except for the operation time.
Note:
This silicon rubber is vulcanized by platinum catalys, the nitrogen, sulfur, phoshor and rgano-tin compound material may hinder its vulcanization, so please clean the rosin on the PCB and use the soldering tin with low lead content.
Packaging:40kg/set。
Storage period :sealed under 30C, the A,B parts shelf life are 9 nine months after production. Thereare sediments come after 3 months,please mix it thorough eveness before using.
|
